Pandas - Plotting

Plotting

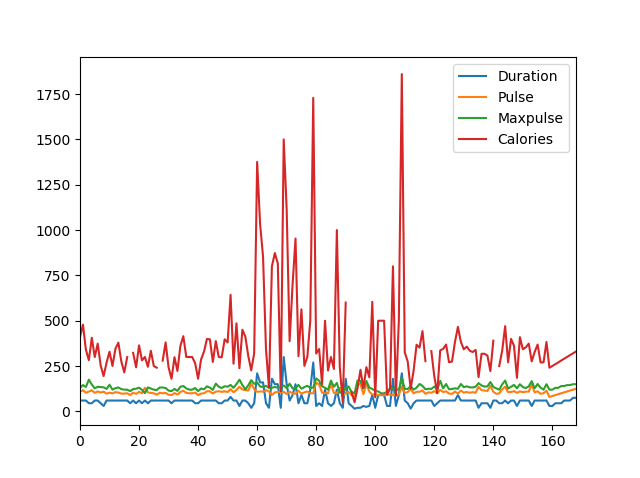

Pandas uses the plot() method to create diagrams.

We can use Pyplot, a submodule of the Matplotlib library to visualize the diagram on the screen.

Read more about Matplotlib in our Matplotlib Tutorial.

import pandas as pd
import matplotlib.pyplot as plt

df = pd.read_csv('data.csv')

df.plot()

plt.show()

The examples in this page uses a CSV file called: 'data.csv'.

Scatter Plot

Specify that you want a scatter plot with the kind argument:

kind = 'scatter'

A scatter plot needs an x- and a y-axis.

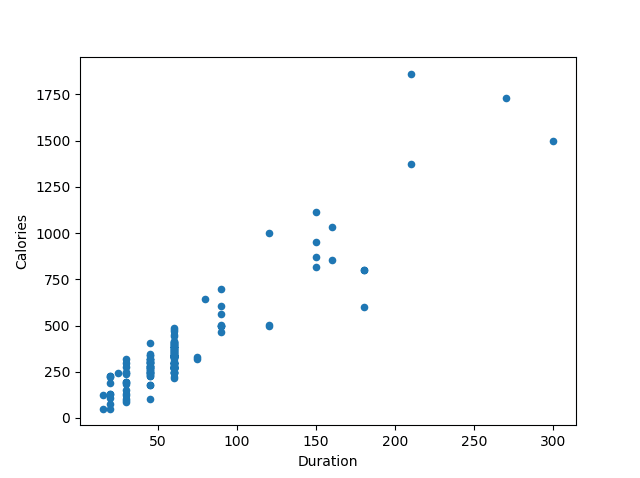

In the example below we will use "Duration" for the x-axis and "Calories" for the y-axis.

Include the x and y arguments like this:

x = 'Duration', y = 'Calories'

import pandas as pd
import matplotlib.pyplot as plt

df = pd.read_csv('data.csv')

df.plot(kind = 'scatter', x = 'Duration', y = 'Calories')

plt.show()

Result

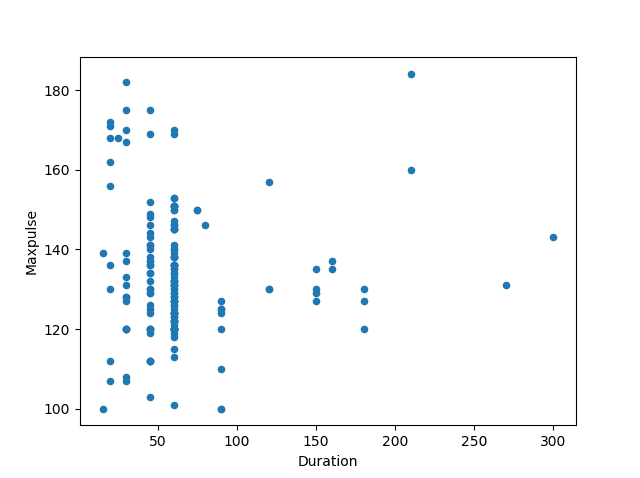

Let's create another scatterplot, where there is a bad relationship between the columns, like "Duration" and "Maxpulse", with the correlation 0.009403:

import pandas as pd
import matplotlib.pyplot as plt

df = pd.read_csv('data.csv')

df.plot(kind = 'scatter', x = 'Duration', y = 'Maxpulse')

plt.show()

Result

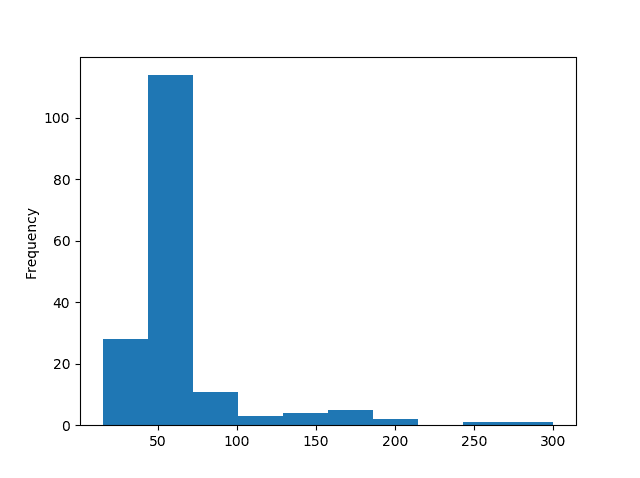

Histogram

Use the kind argument to specify that you want a histogram:

kind = 'hist'

A histogram needs only one column.

A histogram shows us the frequency of each interval, e.g. how many workouts lasted between 50 and 60 minutes?

In the example below we will use the "Duration" column to create the histogram:

df["Duration"].plot(kind = 'hist')

Result
